Are you having issues with your water heater? Does the water seem to take forever to heat up, or do you only get lukewarm water?
How to test a hot water heater is an essential maintenance task to ensure it operates safely and efficiently. Over time, components like the thermostat, heating elements, and pressure valve can wear out or malfunction, leading to potential issues such as insufficient hot water, leaks, or even safety hazards. By conducting a few simple tests, you can diagnose problems early and decide whether repairs or replacements are needed.
If you are uncomfortable performing these tests or do not have experience working with water heaters, it is best to consult a professional.
This guide will walk you through the basic steps to inspect your hot water heater and maintain its performance. Let’s get started!
What Will You Need?
Before you begin testing your water heater, gather the following supplies:
- Safety gloves and goggles
- A multimeter
- A bucket or bowl
- A thermometer
- A screwdriver
- A hose (optional)
Once you have everything gathered, you can begin the testing process.
8 Easy Steps on How to Test a Hot Water Heater
Step 1: Check for Power Supply

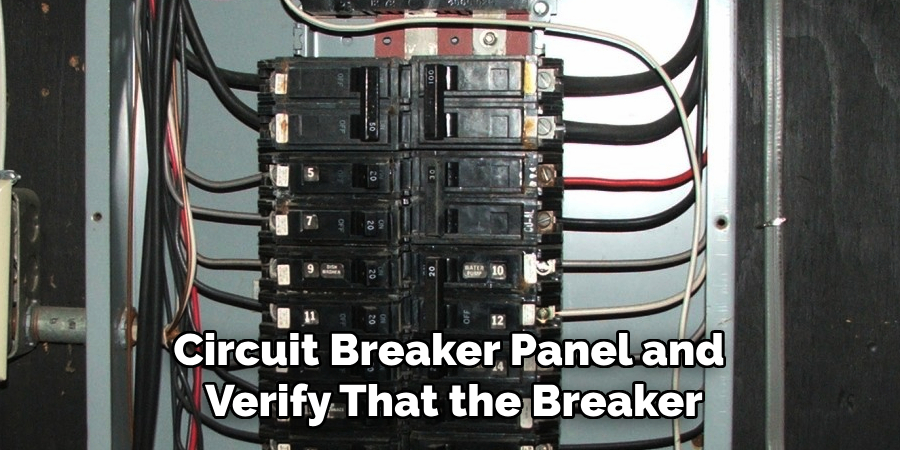

Before performing any tests on your water heater, ensure it receives an adequate and stable power supply. For electric heaters, start by locating the circuit breaker panel and verify that the breaker for the water heater is in the “ON” position. If the breaker has tripped, reset it, but ensure that you monitor it closely, as frequent tripping could indicate an electrical issue that requires professional attention.
Next, use a multimeter to test for voltage at the water heater’s terminals. Carefully remove the access panel and insulation covering the thermostat and heating elements, ensuring the power is turned off before exposing wires. Set the multimeter to the appropriate AC voltage range, then turn the power back on and test the terminals. A functioning water heater should read the proper voltage (typically 240 volts for most residential systems).
Step 2: Test the Thermostat

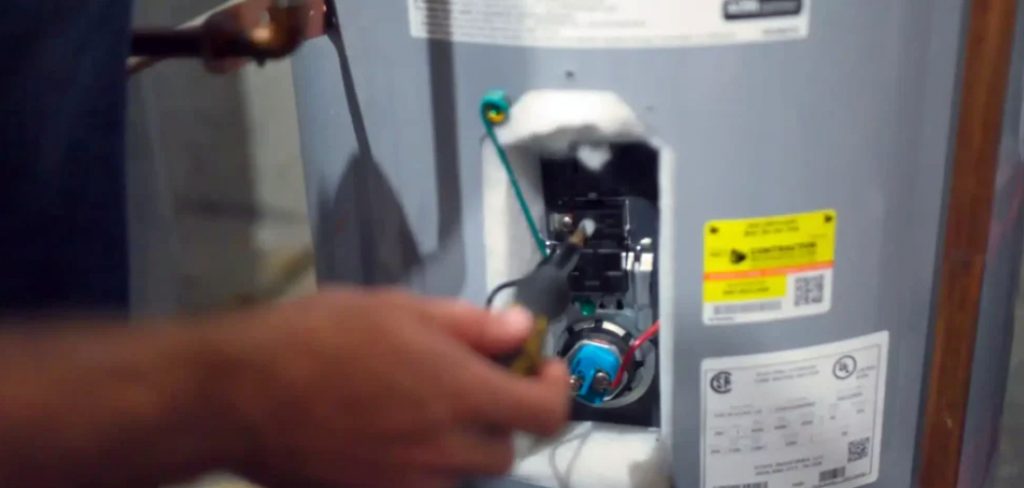

The thermostat is a crucial component that regulates the water temperature inside the heater. To test the thermostat, first, ensure that the power is turned off again for safety. Remove the access panel and insulation as you did when testing the power supply. Using a screwdriver, adjust the dial on the thermostat to its lowest setting, and then use a multimeter to check for continuity. Place the multimeter probes on the thermostat terminals; if there is no reading, the thermostat is faulty and needs to be replaced.
If continuity is present, adjust the thermostat to a higher temperature setting and observe whether the heating elements respond by warming up the water as intended. Be mindful that water temperature should not be set too high—typically between 120°F and 140°F—to avoid safety hazards like scalding or excessive energy consumption. If the thermostat does not properly trigger the heating elements or the water temperature fluctuates erratically, this indicates a malfunctioning thermostat that warrants replacement. Always consult the manufacturer’s specifications for proper thermostat calibration and operation.
Step 3: Inspect the Heating Elements

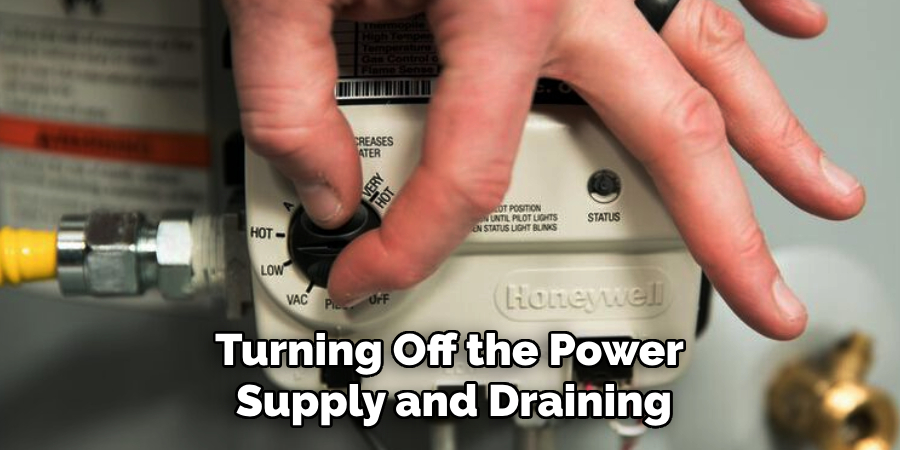

If the thermostat is functioning correctly but the water heater is still not heating adequately, the next step is to inspect the heating elements. Begin by turning off the power supply and draining the tank to access the heating elements safely. A multimeter tests the resistance of each component by placing the probes on the element terminals. A typical reading should fall within the range specified by the manufacturer, often between 10 and 20 ohms for most standard elements.
If the reading is outside this range or lacks continuity, the heating element is likely faulty and should be replaced. Always use a compatible replacement part to maintain optimal performance and safety.
Step 4: Check for Sediment Build-Up
If the heating elements are in good condition but the water heater is still underperforming, sediment build-up in the tank could be the issue. Over time, minerals from the water can settle at the bottom of the tank, reducing heating efficiency and potentially damaging the heating elements. Turn off the power supply and drain the tank completely to address this. Once the tank is empty, use a long brush or vacuum designed for water heaters to remove the sediment. After cleaning, refill the tank and restore power.
Regularly flushing the tank as part of routine maintenance can prevent excessive sediment accumulation and ensure the water heater continues functioning efficiently.
Step 5: Use a Hose to Check for Blockages
If water does not drain properly from the tank, the pipes may have clogs or obstructions. Attach a hose to the drain valve and run it outside to test this. Turn on the hot water tap at a nearby sink or tub and monitor the water flow from the hose; if it is weak or does not flow freely, there may be blockages that require clearing by a professional plumber.
Step 6: Inspect the Pressure Relief Valve

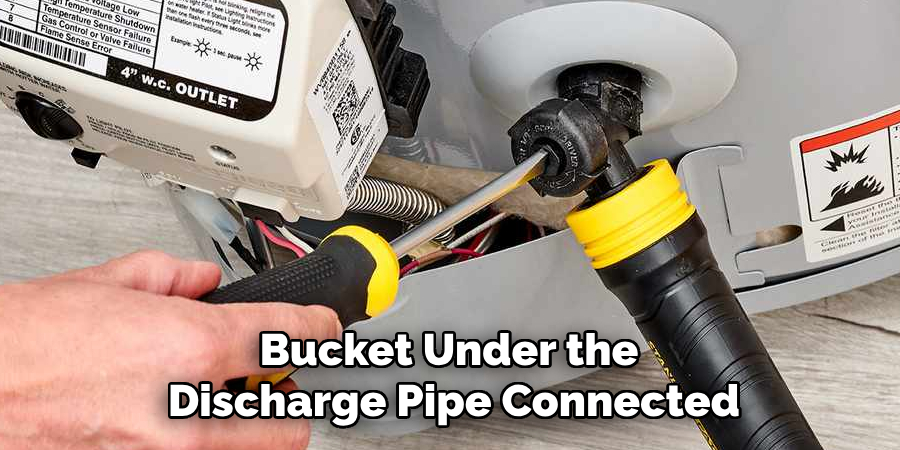

The pressure relief valve is a critical safety component of your water heater that prevents pressure from building up to dangerous levels. To inspect it, first, turn off the power supply and ensure the water inside the tank is not too hot to avoid any risk of burns. Place a bucket under the discharge pipe connected to the valve to catch any water released. Slowly lift the valve’s lever to test its functionality; water should flow out of the discharge pipe and stop immediately when the lever is released.
If no water flows or the valve leaks continuously, it may be faulty and require replacement. Regular inspection of the pressure relief valve ensures the safety and proper functioning of your water heater, helping to avoid potentially hazardous situations.
Step 7: Flush the Tank to Remove Sediment
Over time, sediment can accumulate at the bottom of the water heater tank, reducing its efficiency and potentially causing damage. To flush the tank, turn off the power supply and put the cold water in the heater. Attach a garden hose to the drain valve at the base of the tank and place the other end of the hose in a safe drainage area, such as a floor drain or an outdoor location.
Open the drain valve to allow the water and sediment to flow out of the tank. Once the tank is empty, briefly open the cold water inlet to flush out any remaining debris. Close the drain valve, remove the hose, and refill the tank by slowly reopening the cold water inlet. Ensure all air is purged before turning the power supply back on. Flushing the tank regularly helps maintain the efficiency and longevity of your water heater.
Step 8: Inspect the Anode Rod
The anode rod is a critical component in your water heater that helps prevent corrosion inside the tank. To inspect the anode rod, turn off the power supply and cold water inlet, as you did when flushing the tank. Locate the anode rod, typically found on the top of the water heater, and use a wrench to remove it.
Check the rod for significant wear or corrosion—if it appears heavily corroded or less than half an inch thick, it’s time to replace it. Reinstall the rod or insert a new one, ensuring it is securely tightened. Regular inspection and replacement of the anode rod can significantly extend your water heater’s lifespan.
Following these steps, you can troubleshoot and address common issues with your water heater to ensure it continues operating efficiently and safely.
5 Things You Should Avoid
1. Testing Without Turning Off the Power or Gas: Turn off the power supply or gas connection before testing your water heater. Working on a live appliance can pose serious safety risks, including electrical shocks or gas leaks.
2. Ignoring Manufacturer’s Instructions: Always consult the manufacturer’s manual before testing your water heater. Ignoring these guidelines can lead to improper testing and potentially damage the unit.
3. Skipping Protective Gear: Never test your water heater without proper protective gear, such as gloves and safety goggles. The risk of burns or exposure to high temperatures should not be underestimated.
4. Forgetting to Check for Leaks: Testing a water heater without inspecting for leaks can lead to water damage and potentially costly repairs. Always check for any leaks before proceeding with the testing.
5. Using Incorrect Testing Methods: There are different types of hot water heaters, each requiring specific testing methods. It is crucial to determine the type of heater you have and use the appropriate testing method to ensure accurate results.
Conclusion
How to test a hot water heater is an essential task to ensure it functions efficiently and safely.
You can prevent common issues and costly damages by following proper procedures, consulting the manufacturer’s guidelines, and using the appropriate tools and protective gear. Always prioritize safety by turning off power or gas supplies and inspecting for leaks before beginning any testing. Whether you’re checking the thermostat, pressure relief valve, or heating elements, adhering to the recommended methods for your specific water heater type will help maintain its longevity and performance.
Regular testing and maintenance can save time and money and also ensure a steady hot water supply in your home.
