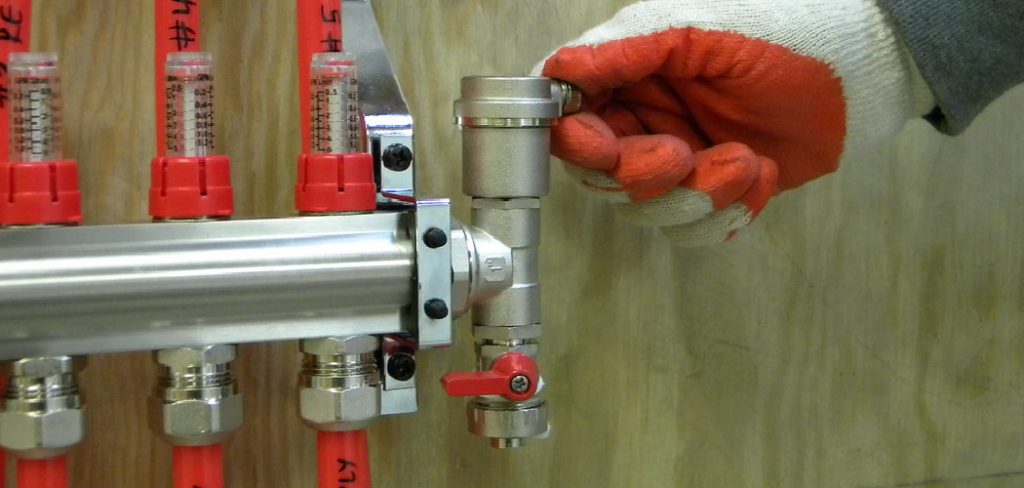

How to Connect Pex Piping

PEX (cross-linked polyethylene) piping has become a preferred choice in modern plumbing due to its flexibility, cost-efficiency, and resistance to corrosion and scaling. Its ease of installation compared to traditional copper or PVC piping has made it a go-to solution for both professional plumbers and DIY enthusiasts. Proper installation, however, is crucial to ensure leak-free, long-lasting connections that comply with plumbing codes and standards. Mistakes during installation can lead to costly repairs, water damage, or subpar performance.

This guide will walk you through how to connect PEX piping using straightforward instructions and tips, ensuring a reliable and efficient setup. Whether you’re outfitting a new system or replacing existing plumbing, these steps will help you approach the process confidently and successfully.

Understanding PEX Piping and Fittings

Types of PEX Pipes

PEX piping is available in three main types, each with unique qualities suited for different applications. PEX-A is the most flexible and durable, making it particularly easy to work with and less likely to kink during installation. This flexibility makes it suitable for projects requiring tight bends or curves. PEX-B is slightly stiffer but highly resistant to chlorine and oxidation, making it a good choice for long-term plumbing systems. Lastly, PEX-C is the least flexible and most economical option, typically used in applications where bending is minimal, and cost savings are a priority. Each type has its own strengths, but for ease of use and flexibility, PEX-A remains a popular choice among professionals and DIYers alike.

PEX Fittings and Connection Methods

PEX piping relies on various fittings and connection methods to create secure joints. Standard options include barbed fittings, which require crimp or clamp rings to secure the PEX over the fitting, and push-fit fittings, a tool-free solution that allows quick connections. Additionally, crimp fittings involve using a crimp ring and tool to create a reliable seal, while compression fittings use threaded nuts to secure the pipe. Selecting the appropriate method depends on the project requirements and tools available.

Tools Needed for Connection

Completing a PEX piping project requires the right tools to ensure a proper installation. Essential tools include pipe cutters, which provide clean, precise cuts for snug connections, and crimping tools for securing crimp rings over fittings. Additionally, expansion tools are used exclusively with PEX-A to stretch the pipe for fitting installation, and fitting inserts help guarantee tight, leak-free connections. Having these tools on hand is critical for a smooth and efficient setup.

Preparing the PEX Pipe for Connection

Proper preparation of PEX piping is essential for a successful and leak-free installation. Follow these steps to ensure that your pipe is ready for connection:

Step 1: Cutting the PEX Pipe

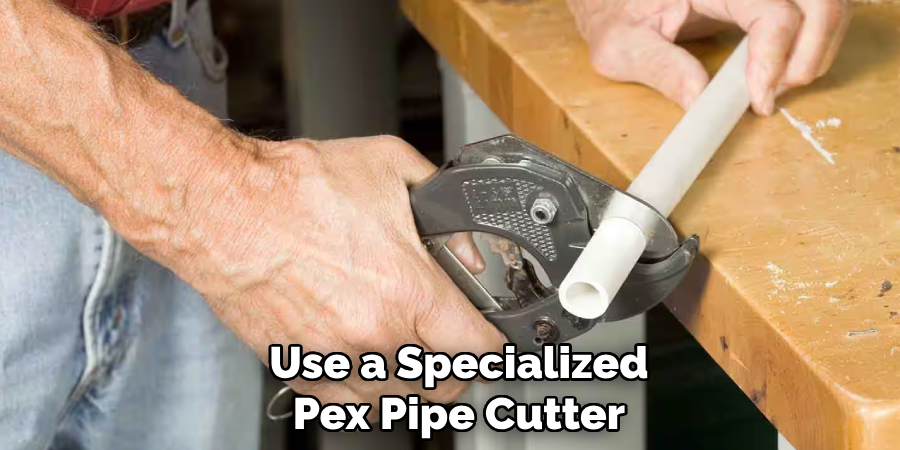

Carefully cut the PEX pipe to the required length using a sharp pipe cutter. The cutter should create a clean, square cut to ensure that the pipe fits securely into the fitting. Uneven cuts can compromise the connection, leading to potential leaks or malfunctions in the system. Always double-check your measurements before cutting to avoid waste and ensure precision.

Step 2: Deburring the Pipe Edge

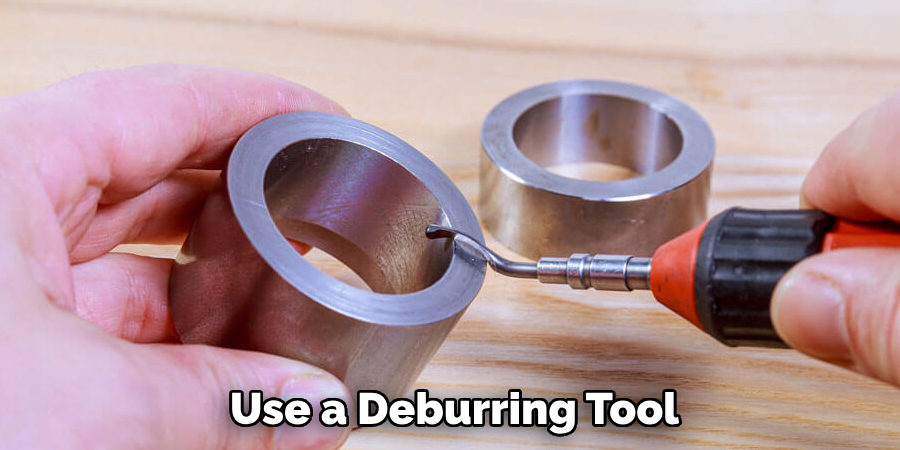

After cutting the pipe, inspect the edges for any burrs or rough surfaces. Use a deburring tool to smooth out these imperfections, as rough edges may prevent a proper seal or damage the fitting. A smooth, even pipe edge ensures that the connection is tight and secure, minimizing the risk of leaks over time. This step is crucial when working with crimp or compression fittings.

Step 3: Choosing the Right Fittings

Select the appropriate type of fitting for the job based on the connection method you plan to use. Options include barbed fittings secured with crimp rings, push-fit fittings that require no tools, and crimp-style fittings for a reliable seal. Ensure that the fitting is compatible with both the PEX pipe size and the specific tools you have on hand. Choosing the right fitting ensures a seamless installation and long-lasting performance.

By following these steps, youAn error occurred during generation. Please try again or contact support if it continues.

How to Connect PEX Piping Connecting PEX Piping Using Push-Fit Fittings

Push-fit fittings are one of the simplest and quickest methods for connecting PEX piping. These fittings are designed to create a secure and watertight connection without requiring specialized tools or additional fastening hardware. Here are the steps to properly connect PEX piping using push-fit fittings:

Step 1: Inserting the Pipe into the Push-Fit Fitting

To start, simply align the PEX pipe with the opening of the push-fit fitting. Firmly push the pipe into the fitting until you hear or feel a distinct “click.” This indicates that the pipe has been inserted fully and the internal gripper and O-ring are engaged, creating a reliable seal.

Step 2: Verifying the Connection

After insertion, gently tug on the pipe to ensure that it is appropriately secured within the fitting. The connection is sound if the pipe does not move or pull free. This step is crucial, ensuring the fitting will hold up under water pressure without leaks.

Step 3: Cutting the Pipe if Necessary

If the PEX pipe needs to be shortened before insertion, use a specialized PEX pipe cutter to achieve a clean, even cut. This ensures proper alignment within the push-fit fitting and prevents leaks or a loose connection. Always double-check the pipe’s length before starting the insertion process.

How to Connect PEX Piping Connecting PEX Piping Using Compression Fittings

Step 1: Sliding the Compression Nut and Ring onto the Pipe

Begin by sliding the compression nut and ring onto the PEX pipe. Ensure that the nut is placed first, followed by the ring, and both are positioned close to the pipe’s end. This step sets the stage for a seamless connection by preparing the pipe for proper insertion into the compression fitting.

Step 2: Tightening the Compression Nut

Once the pipe is inserted into the compression fitting, slide the ring and nut forward until they meet the fitting. Using an adjustable wrench, tighten the compression nut securely. Be careful not to overtighten, as this could damage the pipe or fitting. The goal is to achieve enough pressure to create a tight, durable seal.

Step 3: Ensuring a Leak-Free Connection

After assembling the components, testing the connection for leaks is imperative. Turn on the water supply slowly and observe the joint for any signs of moisture or dripping. Turn off the water and tighten the compression nut slightly if a leak is detected. Repeat until the connection is completely leak-free, ensuring a reliable and lasting installation.

Testing and Ensuring Proper Connections

Step 1: Turn On the Water Supply

Slowly open the water supply to the PEX piping to allow water to flow through the system. This gradual approach helps prevent sudden pressure surges that could potentially compromise the new connections. Monitor the water pressure as you turn on the supply to ensure it remains steady, avoiding any abrupt increases.

Step 2: Checking for Leaks

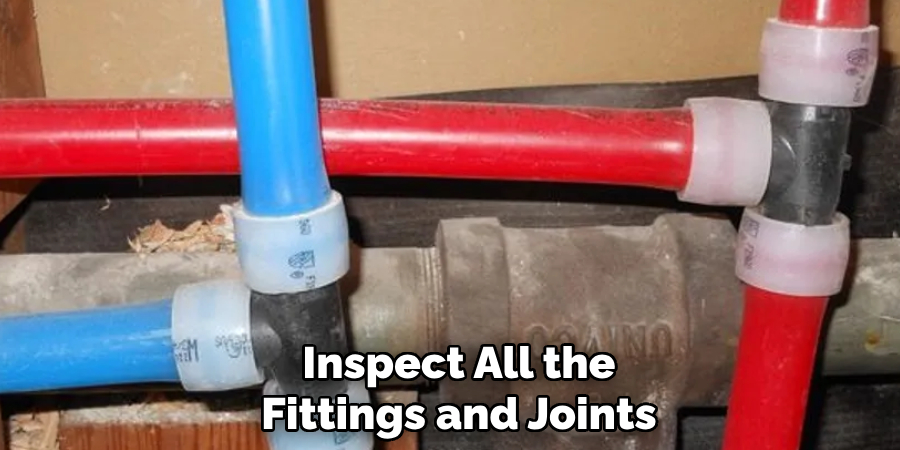

Once the water flows, carefully inspect all the fittings and joints for any visible signs of leakage. Pay close attention to the areas around the compression nuts and rings, as these are common points where leaks might occur. Look for any drips, moisture, or water pooling around the connected sections. Ensuring a thorough examination at this stage is crucial for a secure and functional system.

Step 3: Fixing Leaks if Necessary

If any leaks are detected during the inspection, take immediate action to address them. Shut off the water supply and adjust the fittings as needed, ensuring the compression nuts are properly tightened. Consider replacing damaged components or reassembling the fitting for persistent leaks to achieve a proper seal. Once repairs are completed, retest the system to confirm the connections are secure and leak-free. This step ensures the durability and reliability of the PEX piping installation.

Tips for Proper PEX Installation

Proper Pipe Sizing

Ensure the correct diameter and length of PEX pipe are selected based on your plumbing system’s requirements. Undersized piping can reduce water pressure, while oversized piping may lead to inefficiency. Always consult local plumbing codes and guidelines when determining the appropriate pipe size.

Avoid Sharp Bends

When installing PEX piping, avoid making sharp bends that could compromise the material’s integrity. Use elbow fittings for tight turns, as bending the pipe too sharply can lead to kinks or weakened sections that might fail over time.

Using Pipe Insulation

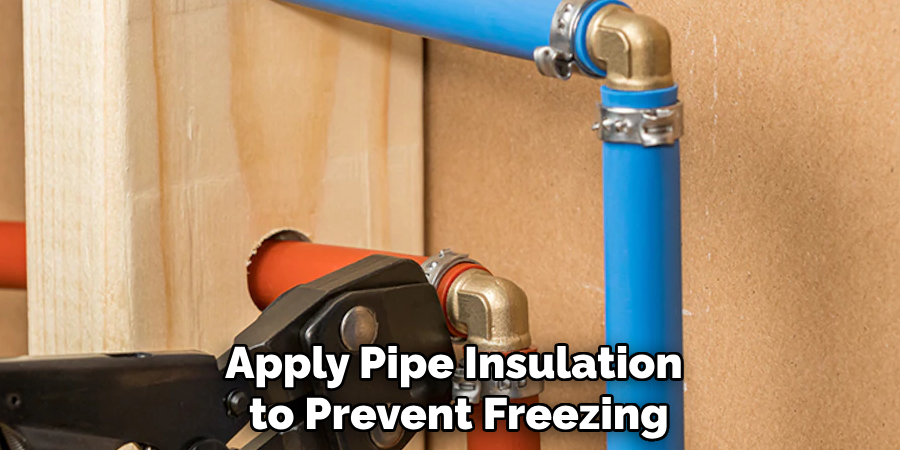

To prevent freezing in colder climates, apply pipe insulation to exposed or vulnerable PEX piping. Proper insulation helps maintain water flow during extreme temperatures and ensures the longevity of your plumbing system.

Secure the PEX Piping

Ensure the PEX piping is supported correctly using pipe hangers or clamps. Regularly spaced supports prevent sagging, reduce noise caused by water hammer, and keep the pipe securely in place throughout its lifespan.

Conclusion

Learning how to connect PEX piping involves a series of essential steps to ensure a reliable and efficient plumbing setup. Start by carefully cutting the piping to the required length using the appropriate tool, ensuring clean and precise cuts. Prepare the ends properly and choose the connection method—crimp, clamp, or push-fit fittings—based on your project needs. Always follow manufacturer instructions and use the recommended tools to avoid errors. Finally, test all connections thoroughly for leaks to confirm the system is functioning correctly. By adhering to these steps, your plumbing system will perform optimally and last for years to come.
